PT-505 video card Settings and Configuration

Category	Video
Video Type	XVGA
Video Processor	Realtek
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

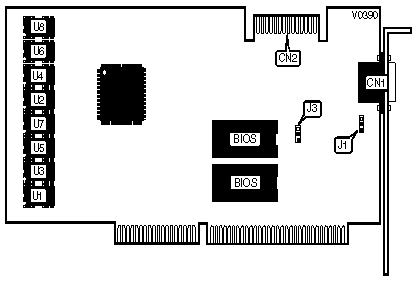

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT SELECTION
Setting		JP1
»	IRQ9 enabled/IRQ7 disabled	Pins 2 & 3 closed
	IRQ7 enabled/IRQ9 disabled	Pins 1 & 2 closed

INTERLACED MODE
Setting		JP2
»	Non-interlaced mode	Closed
	Interlaced mode	Open

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 44256	NONE
512KB	(2) 44256	(2) 44256
