PII-131 ‘286 PRINTER/RS-232 CARD IO card Settings and Configuration

Card Type	Parallel card, Serial card
Chip Set	Unidentified
Maximum Onboard Memory	None
I/O Options	parallel port, serial port
Data Bus	8-bit ISA

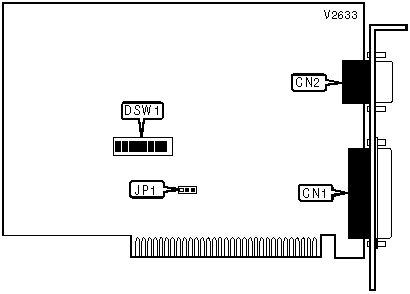

CONNECTIONS
Function	Label	Function	Label
Parallel port	CN1	Serial port	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
PC/AT compatibility selected	JP1	Pins 1 & 2 closed
PC/XT compatibility selected	JP1	Pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION
Setting	DSW1/1	DSW1/3	DSW1/5	DSW1/6
LPT1 (378h)	Off	On	On	Off
LPT2 (278h)	On	Off	Off	On
Disabled	Off	Off	Off	Off

SERIAL PORT 1 ADDRESS SELECTION
Setting	DSW1/2	DSW1/4	DSW1/7	DSW1/8
COM1 (3F8h)	Off	On	Off	On
COM2 (2F8h)	On	Off	On	Off
Disabled	Off	Off	Off	Off
