VIKOM PRO modem/telephone/ISDN Settings and Configuration
TTC COMPUTER PRODUCTS
VIKOM PRO
Modem Type | Data (Asynchronous)/Fax/Voice |
Maximum Data Rate | 2400bps |
Maximum Fax Rate | 9600bps |
Data Bus | 8-bit ISA |
Fax Class | Unidentified |
Data Modulation Protocol | Unidentified |
Fax Modulation Protocol | Unidentified |
Error Correction/Compression | Unidentified |

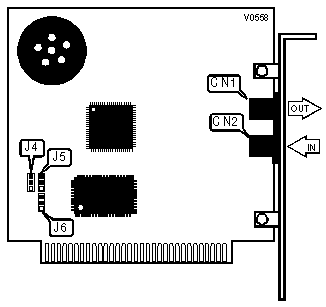

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Line out | CN1 | Line in | CN2 |
COM PORT SETTINGS | |||
COM | J4 | J5 | J6 |
í COM2/IRQ3 | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
COM1/IRQ4 | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
COM3/IRQ4 | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
COM4/IRQ3 | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
