PRO66-SP Motherboard Settings and Configuration

FREE COMPUTER TECHNOLOGY, INC.

PRO66-SP

Processor
Pentium Pro
Processor Speed
150/166/180/200MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
512MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium Pro CPU)
BIOS
AMI
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, VRM connector, USB connector, ATX power connector, power on/off switch
NPU Options
None

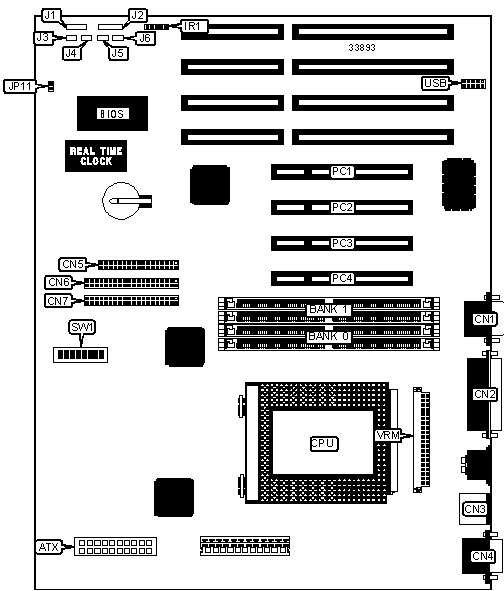

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
IDE interface 1
CN7
Serial port 2
CN1
IR connector
IR1
Parallel port
CN2
Front panel connectors
J1 - J6
PS/2 mouse port
CN3
32-bit PCI slots
PC1 - PC4
Serial port 1
CN4
USB connector
USB
Floppy drive interface
CN5
VRM connector
VRM
IDE interface 2
CN6

Note: The front panel connectors consist of a speaker, power LED & keylock, IDE interface LED, reset switch, turbo LED, green PC connector and power on/off switch. The location of the power on/off switch is unidentified.

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP11
Open

CMOS memory clear
JP11
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 2M x 36
(2) 4M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 2M x 36
(2) 8M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 16M x 36
None
128MB
(2) 8M x 36
(2) 8M x 36
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 2M x 36
(2) 16M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 8M x 36
(2) 16M x 36
256MB
(2) 32M x 36
None
256MB
(2) 16M x 36
(2) 16M x 36
264MB
(2) 32M x 36
(2) 1M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
272MB
(2) 2M x 36
(2) 32M x 36
288MB
(2) 32M x 36
(2) 4M x 36
320MB
(2) 8M x 36
(2) 32M x 36
384MB
(2) 32M x 36
(2) 16M x 36
512MB
(2) 32M x 36
(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
150MHz
60MHz
2.5x
Off
On
On
On
166MHz
66MHz
2.5x
Off
On
On
On
180MHz
60MHz
3x
On
Off
On
On
200MHz
66MHz
3x
On
Off
On
On

CPU SPEED SELECTION (CON’T)
CPU speed
Clock speed
Multiplier
SW1/5
SW1/6
SW1/7
SW1/8
150MHz
60MHz
2.5x
On
Off
On
Off
166MHz
66MHz
2.5x
Off
On
Off
On
180MHz
60MHz
3x
On
Off
On
Off
200MHz
66MHz
3x
Off
On
Off
On
