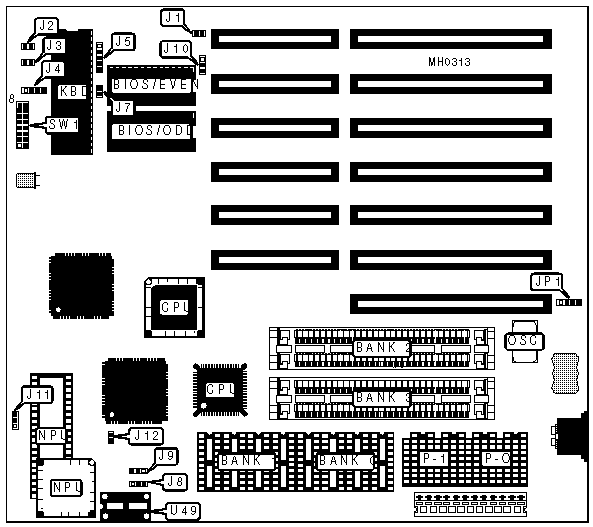

PA386SX-SMT-16/20/25 Motherboard Settings and Configuration

PEAKTRON COMPUTER, INC.

PA386SX-SMT-16/20/25

PA286-SMT-12/16/20/25

Processor
80286/80386SX
Processor Speed
12/16/20/25MHz
Chip Set
Peaktron
Max. Onboard DRAM
16MB
Cache
None
BIOS
AMI
Dimensions
248mm x 218mm
I/O Options
None
NPU Options
80287/80387

CONNECTIONS
Purpose
Location
Purpose
Location
Reset switch
J1
Speaker
J4
Turbo switch
J2
Power LED & Keylock
J5
Turbo LED
J3
External battery
JP1
Note:Motherboard is supplied with either an 80386SX & 80387SX socket or an 80286 & 80287 socket.

USER CONFIGURABLE SETTINGS
Function
Jumper/Switch
Position
»
Monitor type select monochrome
J7
open

Monitor type select color
J7
closed
»
NPU mode select synchronous with OSC1
J11
pins 2 & 3 closed

NPU mode select synchronous with oscillator at U49
J11
pins 1 & 2 closed

Bus speed select ATCLK/2
SW1/1
Off

Bus speed select ATCLK/3
SW1/1
On
»
Parity check enabled
SW1/2
On

Parity check disabled
SW1/2
Off
»
Shadow ram disabled
SW1/4
On

Shadow ram enabled
SW1/4
Off
Note:Socket at U49 may not be available on all boards.
If 8 bit SIMM/SIPPs are used, SW1/switch 2 must be open, otherwise it must be closed.

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
P - 0
P - 1
512KB
(4) 44256
NONE
NONE
NONE
(2) 41256
NONE
512KB
NONE
NONE
(2) 256K x 9
NONE
NONE
NONE
1MB
(4) 44256
(4) 44256
NONE
NONE
(2) 41256
(2) 41256
1MB
NONE
NONE
(2) 256K x 9
(2) 256K x 9
NONE
NONE
1.5MB
(4) 44256
(4) 44256
(2) 256K x 9
NONE
NONE
NONE
2MB
(4) 441000
NONE
NONE
NONE
(2) 411000
NONE
2MB
NONE
NONE
(2) 1M x 9
NONE
NONE
NONE
3MB
(4) 44256
(4) 44256
(2) 1M x 9
NONE
NONE
NONE
4MB
(4) 441000
(4) 441000
NONE
NONE
(2) 411000
(2) 411000
4MB
NONE
NONE
(2) 1M x 9
(2) 1M x 9
NONE
NONE
5MB
(4) 44256
(4) 44256
(2) 1M x 9
(2) 1M x 9
NONE
NONE
6MB
(4) 441000
(4) 441000
(2) 1M x 9
NONE
NONE
NONE
8MB
NONE
NONE
(2) 4M x 9
NONE
NONE
NONE
16MB
NONE
NONE
(2) 4M x 9
(2) 4M x 9
NONE
NONE

DRAM JUMPER/SWITCH CONFIGURATION
Size
J8
J9
SW1/5
SW1/6
SW1/7
SW1/8
512KB
2 & 3
1 & 2
Off
On
Off
Off
512KB
1 & 2
2 & 3
Off
On
Off
Off
1MB
2 & 3
1 & 2
Off
On
Off
On
1MB
1 & 2
2 & 3
Off
On
Off
On
1.5MB
2 & 3
1 & 2
Off
Off
On
Off
2MB
2 & 3
1 & 2
On
Off
Off
Off
2MB
1 & 2
2 & 3
On
Off
Off
Off
3MB
2 & 3
1 & 2
Off
On
On
On
4MB
2 & 3
1 & 2
On
Off
Off
On
4MB
1 & 2
2 & 3
On
Off
Off
On
5MB
2 & 3
1 & 2
Off
On
On
On
6MB
2 & 3
1 & 2
On
Off
On
Off
8MB
1 & 2
2 & 3
On
On
Off
Off
16MB
1 & 2
2 & 3
On
On
Off
On
Note:Pins designated should be in the closed position.

BIOS CONFIGURATION
Size
J10
J12
27256
pins 1 & 2 closed
Open
27512
pins 2 & 3 closed
Closed
