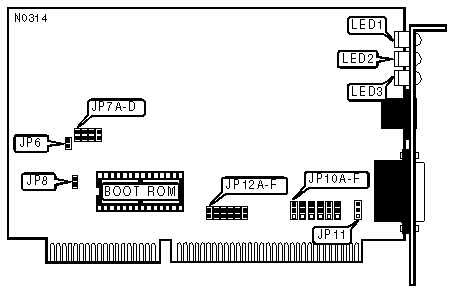

EN-6360 (Version 1.1) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

COMPATIBILITY MODE
Setting		JP6
»	DIsabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed
Note: On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing, enabling the compatibility mode may allow the card to function properly

BOOT ROM ADDRESS
Address		JP7A	JP7B	JP7C	JP7D
	C0000h	Closed	Closed	Closed	Closed
	C4000h	Open	Closed	Closed	Closed
»	C8000h	Closed	Open	Closed	Closed
	CC000h	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Open	Closed
	D4000h	Open	Closed	Open	Closed
	D8000h	Closed	Open	Open	Closed
	DC000h	Open	Open	Open	Closed

BOOT ROM
Setting		JP8
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		JP10A-JP10F	JP11
»	Unshielded twisted pair	Pins 1 & 2 closed	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed	Pins 1 & 2 closed

I/O BASE ADDRESS
Address		JP12A	JP12B
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

INTERRUPT SETTINGS
IRQ		JP12C	JP12D	JP12E	JP12F
	2	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED2	Green	On	Data is being received
LED2	Green	Off	Data is not being received
LED3	Red	On	Twisted pair connection is good
LED3	Red	Off	Twisted pair connection is broken
