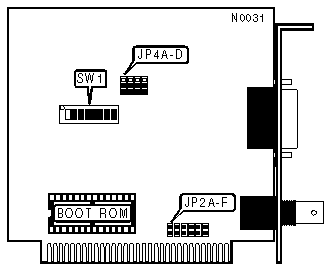

G/Ethernet PC-(WS) Adapter Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

INTERRUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D	JP2E	JP2F
»	3	Open	Closed	Open	Open	Open	Open
	2	Closed	Open	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open
	6	Open	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Open	Closed

CABLE TYPE
Type		JP4A - JP4D
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 Closed
	AUI transceiver via DB-15 port	Pins 2 & 3 Closed

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4
»	2A0h-2BFh	On	Off	On	On
	280h-29Fh	On	On	On	On
	2C0h-2DFh	On	On	Off	On
	2E0h-2FFh	On	Off	Off	On
	300h-31Fh	On	On	On	Off
	320h-33Fh	On	Off	On	Off
	340h-35Fh	On	On	Off	Off
	360h-37Fh	On	Off	Off	Off

BOOT ROM ADDRESS
Address		SW1/5	SW1/6
»	CC000-CFFFFh	Off	Off
	C0000-C3FFFh	On	On
	C4000-C7FFFh	Off	On
	C8000-CBFFFh	On	Off

MISCELLANEOUS NOTES

The PC adapter can be used in a file server or a work station while the PC-WS adapter can be used in a work station only. Different drivers must be used for the National & the Fujitsu chipset cards, they are not interchangeable. Fujitsu adapters may be used for either 8 or 16-bit Fujitsu cards, while the National chipset cards require a different driver for an 8 or 16-bit card.
