ELS I (ASSY#1016-200-01) Network Card Settings and Configuration
JC INFORMATION SYSTEMS CORPORATION
ELS I (ASSY#1016-200-01)
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8-bit ISA |
Topology | Linear bus |
Wiring Type | RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
CABLE TYPE | ||

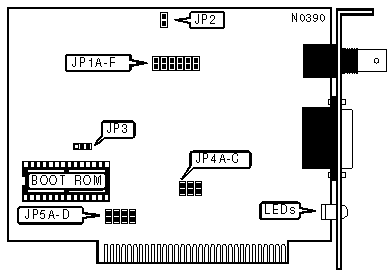

Type | JP1A - JP1F | |
| » | RG58A/U 50ohm coaxial | Closed |
AUI transceiver via DB-15 port | Open | |
I/O BASE ADDRESS & BOOT ROM ADDRESS | |||
I/OAddress | Boot ROM Address | JP4A | JP4B |
300h | C8000h | Closed | Closed |
320h | CC000h | Open | Closed |
340h | D0000h | Closed | Open |
360h | D4000h | Open | Open |
BOOT ROM | ||
Setting | JP4C | |
| » | Disabled | Open |
Enabled | Closed | |
INTERRUPT REQUEST | |||||
IRQ | JP5A | JP5B | JP5C | JP5D | |
| » | 2 | Closed | Open | Open | Open |
3 | Open | Closed | Open | Open | |
4 | Open | Open | Closed | Open | |
5 | Open | Open | Open | Closed | |
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
JP2 | Unused |
JP3 | Unused |
DIAGNOSTIC LED(S) | ||
Color | Status | Condition |
Green | On | Data is being transmitted or received |
Green | Off | Data is not being transmitted or received |
Red | Off | Network connection is good |
Red | On | Network connection is broken |
Note:The location of the diagnostic LEDs may vary on different revisions of this card. | ||
