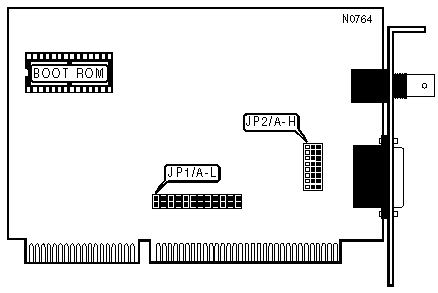

16-BIT 10BASE2 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

ADDRESS SELECT
I/O Address		Base Memory Address	JP1/B	JP1/C
»	300h	C800h	Closed	Closed
	320h	CC00h	Open	Closed
	340h	D000h	Closed	Open
	360h	D400h	Open	Open

BOOT ROM
Setting		JP1/A
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		JP2/A-H
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

INTERRUPT SELECT
IRQ		JP1/E	JP1/F	JP1/G	JP1/H	JP1/I	JP1/J	JP1/K	JP1/L
»	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Closed

ZERO WAIT STATE
Setting		JP1/D
»	Enabled	Open
	Disabled	Closed
