NEWCLEAR SC128-3D Sound card Settings and Configuration

Card Type	Sound card
Chip Set	S3
Maximum Onboard Memory	Unidentified
I/O Options	Line in (2), microphone in (2), line out (2), speaker out (2), game port, audio in - CD-ROM, auxiliary in, TAD connector
Data Bus	32-bit PCI
Card Size	Half-length, full-height

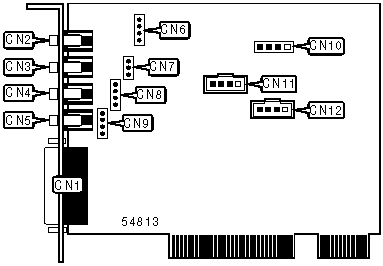

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Microphone in - internal	CN7
Line in	CN2	Line out - internal	CN8
Microphone in	CN3	Speaker out - internal	CN9
Line out	CN4	Auxiliary in	CN10
Speaker out	CN5	Audio in - CD-ROM	CN11
Line in - internal	CN6	TAD connector	CN12
