SC500 Sound card Settings and Configuration






REVEAL COMPUTER PRODUCTS

SC500

Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

CD-ROM - audio interfaces (3), game port, IDE interfaces (3), line out, line in, microphone

Data Bus

16-bit ISA

Card Size

Three quarter length, full height

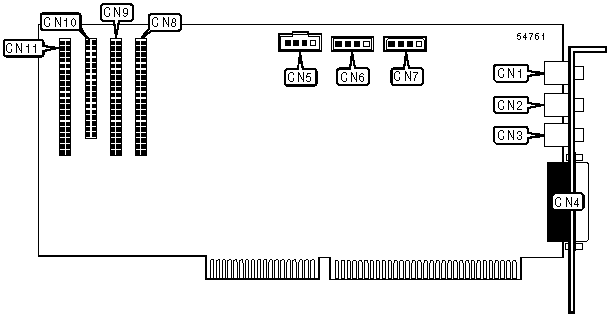

CONNECTIONS

Function

Label

Function

Label

Speaker Out

CN1

Panasonic Audio Connector

CN7

Line In

CN2

IDE CD-ROM Connector

CN8

Microphone in

CN3

Panasonic CD-ROM Connector

CN9

Game/MIDI port

CN4

Mitsumi CD-ROM Connector

CN10

Sony Audio Connector

CN5

Sony CD-ROM Connector

CN11

Mitsumi Audio Connector

CN6
